Korg EX-800 Digitally Controlled Analog Synthesizer

---

1 toets gemist.

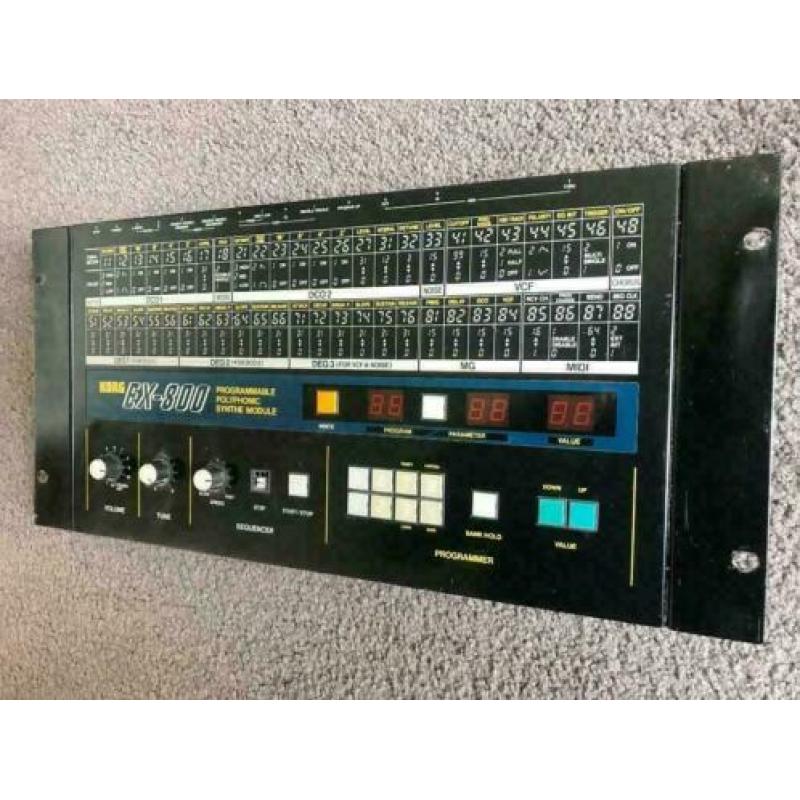

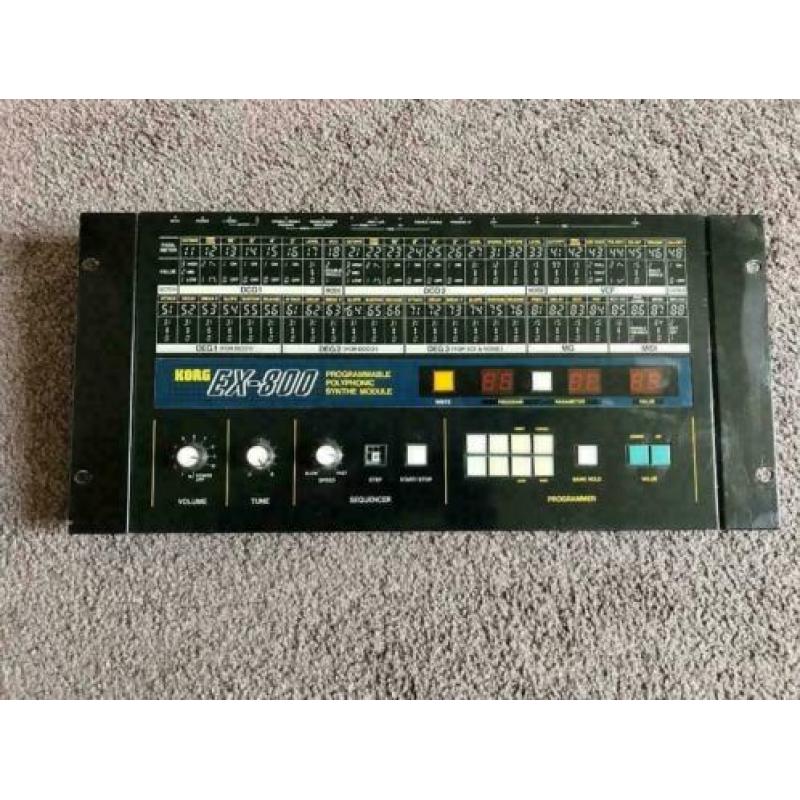

Korg released the EX-800 table top version of it\'s Poly 800 synthesizer keyboard. The unit sounded and featured the same structure as the keyboard with some differences in the front panel. The buttons are larger square shaped as opposed to the keyboard\'s thin and longer ones. 3 knobs controlled the volume, tuning, and, speed control for the LFO and sequencer.
The front panel matrix remained similar to the original for editing sound parameters as well as the 256 event sequencer found on the Poly 800.
Type: Analog
Synthesis: Subtractive
Oscillators
Oscillators: 2
Oscillator Notes:
1 oscillator - 1 DCO per voice
Envelope Notes::
1 ADSR envelope
Filter Notes:
1 VCF 24db low pass filter
LFO Notes::
1 LFO traingle waveform only
Polyphony & Tuning
Polyphony: 8
Timbrality: 1
Tuning: Standard
Modes: Polyphonic
Patches
Patches RAM: 64
Storage: Internal, 6
Editing: MIDI
Effects
chorus
Sequencer
256 event seqeuncer
